Flat rack container
Flat rack container specifications: a floor and two end walls, for out-of-gauge and heavy lifts that no closed box can take.
A flat rack is a container floor with end walls and no sides or roof. Cargo is loaded from the side or above and lashed to rings along the floor; overheight cargo that still fits the box width goes in an open top instead. End walls are fixed or collapse flat so empties stack for return.
Ratings vary more than any other type because the floor and the corner castings are designed to the intended load. The 40′ figures below are the reference; a 20′ flat rack is typically rated to 34,000 kg gross with a payload near 31,000 kg.
Typical uses
- Out-of-gauge machinery and vehicles
- Industrial generators and transformers
- Boats and project cargo
Grades supplied
New / one-trip, Cargo-worthy. What each grade means: container grades.
Flat rack container specification, 40ft reference
| Specification | Value | Unit |
|---|---|---|
| External length | 12,192 | mm |
| External width | 2,438 | mm |
| External height | 2,591 | mm |
| Floor length (between end walls) | 11,660 | mm |
| Floor width | 2,200 to 2,400 | mm |
| Loadable height (end walls up) | 1,955 | mm |
| Tare | 5,000 to 5,700 | kg |
| Max gross | 45,000 | kg |
| Payload | 39,000 to 45,000 | kg |
| End walls | Collapsible or fixed | |
| Floor | Steel with timber inlay, lashing rings |
How to buy a flat rack container
Container Trading
New, one-trip, cargo-worthy and wind and water tight units, bought and sold as single units, fleet lots, regional inventory sales and portfolio disposals.
Other equipment
Tell us the equipment, grade, quantity and lane.
A director replies within one working day with availability and an indicative price.

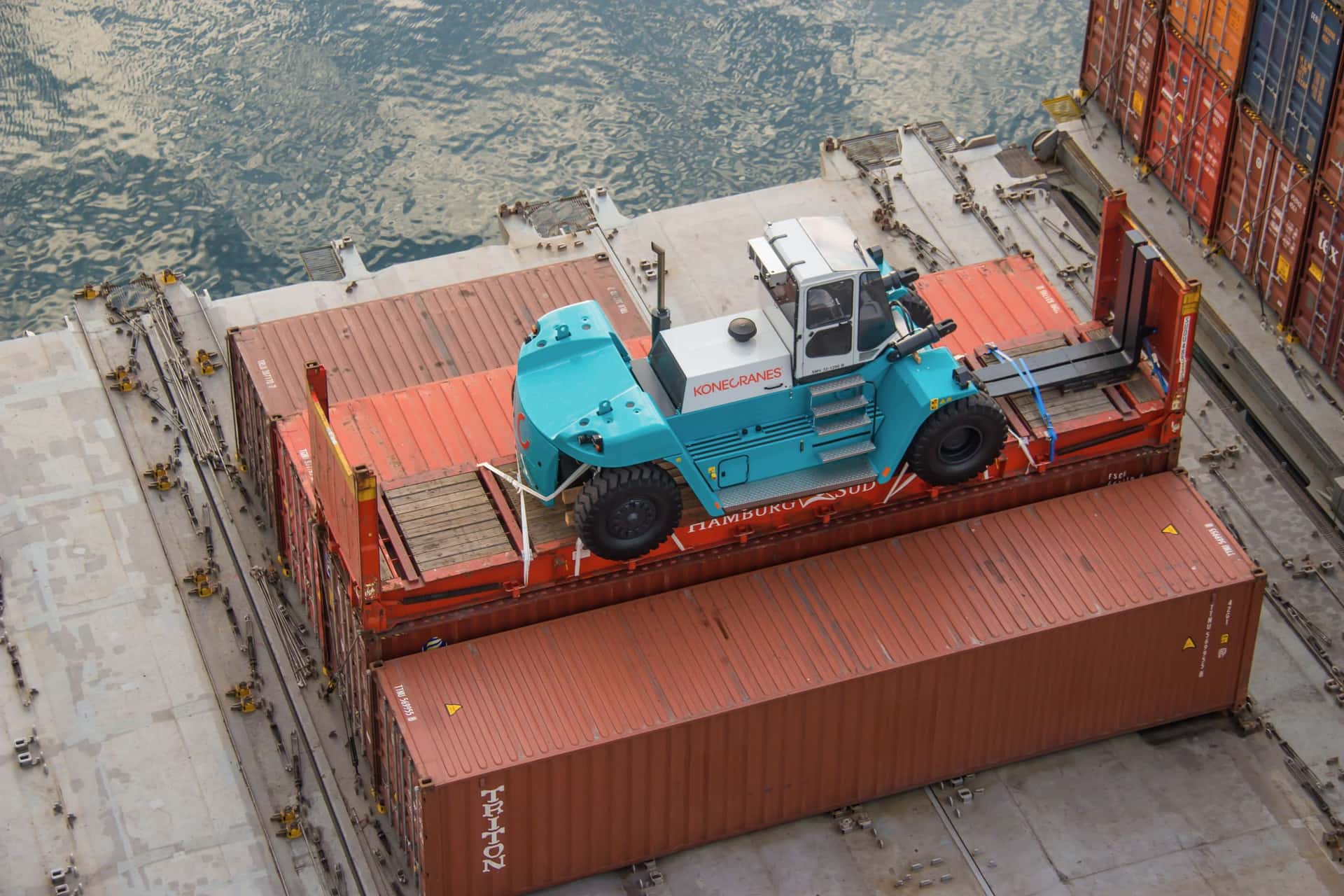

Photo: TrainLearnGrow, CC BY-SA 4.0
